Re: [Orekit Users] Corridor smaller with larger degrees.

[Petrus Hyvönen <petrus.hyvonen@gmail.com>]

Hi,

Note that the class itself uses radians for the angle, in case you are accessing it directly and not through a parsed file.

Regards

/petrus

On Fri, Feb 7, 2014 at 8:26 PM, Carlos Krefft <ckrefft@rsmas.miami.edu> wrote:

Can anyone explain to me why the CorridorHandler in the TrackCorridor.java tutorial will give me a larger corridor width with a small degree value and a smaller corridor width with a larger degree value? And at 0 Degrees it’s just a line(This part makes sense).



The comment says “angular offset (half width of the corridor, as seen from spacecraft, in degrees)”. So the following results don’t make sense to me.



I first thought it was using depression angle, but that wouldn’t make sense either.

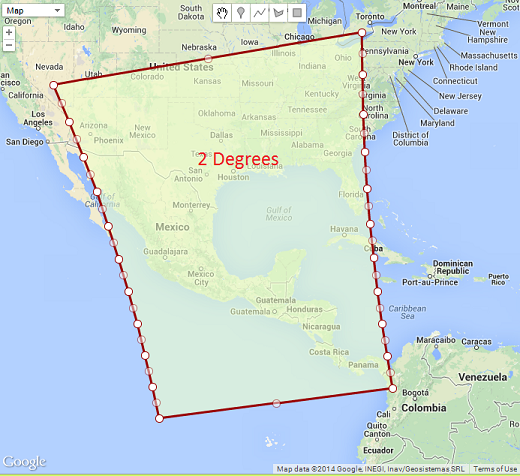

At 2 degrees:

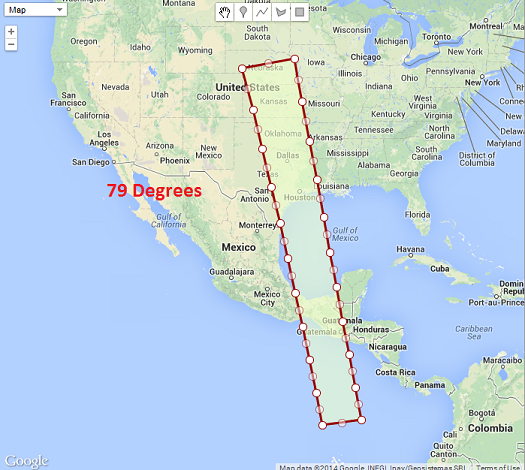

At 79 degrees:



Kind Regards,

Carlos Krefft







--
