Design Overview

Global architecture

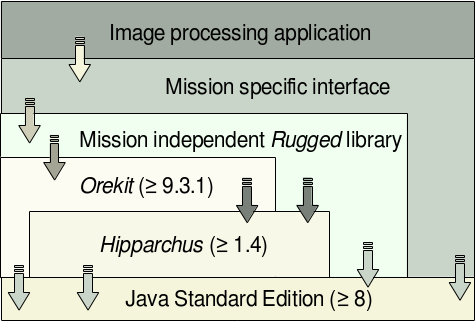

Rugged is an intermediate level mission-independent library. It relies on the Orekit library and on the Hipparchus library. It is itself intended to be used from a mission-specific interface by one or more image processing applications.


The Java platform provides the runtime environment, the Hipparchus library provides the mathematical algorithms (3D geometry, root solvers …), the Orekit library provides the space flight dynamics computation (frames transforms, orbits and attitude propagation and interpolation …). The Rugged library itself provides the algorithms dealing with line-of-sight intersection with Digital Elevation Models in a mission-independent way. Rugged does not parse the DEM models itself, nor does it performs image processing. Mission-dependent parts (including Digital Elevation Model parsing or instrument viewing model creation) remain under the responsibility of Rugged caller, typically using a mission-specific library used by several image processing applications.

This architecture allows both the image processing application and the mission specific interface to be as independent as possible from space flight dynamics and geometry. These parts can therefore be implemented by image processing specialists. The application itself can even be written in a programming language as C++, there is no need for the Java language at this level. It is expected that the mission specific interface is written using the Java language to simplify data exchanges with the lower layers and avoid complex data conversion. Data conversion is performed only between the image processing application and the interface layer, and is limited to very few high level functions with few primitive types (raw arrays for pixels or ground coordinates).

The Rugged library is developed in the Java language and has full access to the Orekit and Hipparchus libraries. It is designed and developed by space flight dynamics and geometry specialists, with support from the image processing specialists for the API definition.

Functional Breakdown

The following table sorts out the various topics between the various layers.

Topic Layer Comment
Sensor to ground mapping Rugged Direct location is the base feature provided
Ground to sensor mapping Rugged Inverse location is another base feature provided
Individual pixels Rugged The API supports any number of pixels, defined by their individual line of sight provided by caller
Optical path Interface The folded optical path inside the spacecraft is taken into account by computing an overall transform combining all inside reflections, so each pixel position and line of sight can be computed later on by a single translation and rotation with respect to spacecraft center of mass
Line time-stamping Interface/Rugged The caller must provide a simple time-stamping model (typically linear) that will be applied
Orbit and attitude interpolation Orekit Both simple interpolation from timestamped position samples and full orbit propagation are available, thanks to Orekit streamlined propagator architecture
CCSDS Orbit/Attitude file parsing Orekit This is supported as long as standard CCSDS Orbit Data Message (CCSDS 502.0-B-2) and CCSDS Attitude Data Messages (CCSDS 504.0-B-1) are used
Custom Orbit/Attitude file parsing Interface Custom files can be loaded by mission specific readers, and the list or orbit/attitude states can be provided to Orekit which is able to handle interpolation from these sample data
Frames transforms Orekit Full support to all classical reference inertial and Earth frames is already provided by Orekit (including the legacy EME2000, MOD, TOD, but also the more modern GCRF, ICRF, TIRF or exotic frames like TEME or Veis1950, as well as several versions of ITRF)
IERS data correction Orekit All frame transforms support the full set of IERS Earth Orientation Parameters corrections, including of course the large DUT1 time correction, but also the smaller corrections to older IAU-76/80 or newer IAU-2000/2006 precession nutation models as well as the polar wander. The frames level accuracy is at sub-millimeter level
Grid-post elevation model Rugged Only raster elevation models are supported
Triangulated Irregular Network elevation model Not supported If vector elevation models are needed, they must be converted to raster form in order to be used
Geoid computation Orekit Rugged expects the Digital Elevation Models to be provided with respect to a reference ellipsoid. Orekit can be used to convert a geoid-based DEM to an ellipsoid-based DEM, directly from any gravity field
Time-dependent deformations Interface/Rugged Simple line-of-sight models (typically polynomial) can be used
Calibration Image processing or interface The calibration phase remains at the mission-specific caller level (pixels geometry, clock synchronization …), the caller is required to provide the already calibrated line of sights
DEM file parsing Interface The elevation models are dedicated to the mission and there are several formats (DTED, GeoTIFF, raw data …).Rugged only deals with raw elevation on small latitude/longitude cells
Atmospheric refraction Abstract/Rugged Atmospheric refraction correction is supported with a default multi-layer model provided. Some other models can be provided by the user
